Tube Expander Parts
The following reference showing the application and the appropriate SUNGMO Expander type is provided as a quick, easy guide.
SUNGMO Expanders are precision made, designed for toughness and durability, as well as to provide the ultimate of tube to tube sheet seal.
The correct selection fr application and correct use are essential to gain these advantages which SUNGMO Expanders provide.

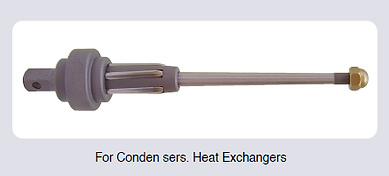

AS-MB type expander
Tube ID 5.4mm(7/32 in) to 10mm(3/8 in)
Roller length of 25mm(1 in)
accommodate the range of tube sheet thickness
Adjustable ball bearing collar to set expandion length
AS-CB type expander
Tube ID 9mm(3/8 in) to 92mm(3-1/8 in)
Standard roller length of
38mm(1-1/2 in), 57mm(2-1/4 in) and 76mm(3 in)
accommodate the full range of tube sheet thickness
Adjustable ball bearing collar to set expansion length
AS-HB type expander
Tube ID 9mm(3/8 in) to 92mm(3-1/8 in)
Standard roller length of
38mm(1-1/2 in), 57mm(2-1/4 in) and 76mm(3 in)
For tube sheet of more than 75mm(3 in) thickness and duble tube sheets.
Adjustable ball bearing collar to set expansion length
AS-BK type expander
Tube ID 20mm(13/16 in) to 106mm(4-3/16 in)
Mandrels - drum, header and short.
Parallel expanding rollers and flaring rollers.
Five - Roller expander
Designed for smooth and accurate expansion of thin walled tubes,
Such as titanium tubes.
Mandrel Couplings
These are engineered to facilitate rapid connection and disconnection of the expanders to the Tube Roller.
A "one-touch" Design allows quick change with positive connection.
SE series - Tube Rolling Motor & Controller
Tube expansion rolling machine.
Controller - SE 101(full digital type)
Rolling motor - SE200, SE400, SE600
Rolling motor need Controller SE-101
AC 110v, 220v
SH series - HyduraulicTube Rolling machine
Hyduraulic expanding machine
Free voltage 3Phase AC220 or 380V Anti backlash system
